How to use the Chronicall/ACR Network Database Migration

Utilizing a network database migration can greatly decrease the amount of time a server migration will take because no backups are required. The data is directly imported to the new Chronicall/ACR install with the old database being unchanged.

NOTE: This will only work when upgrading from 3.12.6a to 4.4+ and will only migrate the database. Recording library instances will still need to be transferred manually.

NOTE: In order to properly migrate, each server will need to be able to communicate with each other across the network.

Steps

1. Install your 4.4+ instance of Chronicall/ACR on the desired server
2. On the old 3.12.6a server, save the settings.xml and resource folder as they will still need to be transferred manually
   • The resource folder can usually be found here:
     • Windows

       • C:\Program Files (x86)\Xima Software\Chronicall\tomcat\webapps\ROOT

       • C:\Program Files\Avaya Call Reporting\tomcat\webapps\ROOT

     • Linux

       • /var/lib/Xima\ Software/Chronicall/tomcat/webapps/ROOT

       • /var/lib/Avaya\ Call\ Reporting/tomcat/webapps/ROOT

   • The settings.xml can usually be found here:
     • Windows

       • C:\Program Files (x86)\Xima Software\Chronicall\

       • C:\Program Files\Chronicall\

       • C:\Program Files\Avaya Call Reporting

     • Linux

       • /var/lib/Xima\ Software/Chronicall

       • /var/lib/Avaya\ Call\ Reporting





3. On the 4.4+ version of Chronicall/ACR navigate to Admin (System) > Chronicall/Avaya Call Recording Backup/Restore
4. Select "Migrate Data to Chronicall/Avaya Call Reporting version 4.4+"

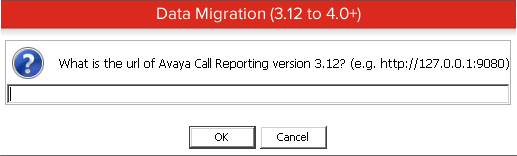

5. Enter the IP address and port of the old server you are migrating the data from




6. Stop Chronicall/ACR service on the new server and replace the settings.xml and resource folder in their respected directories
   • This will allow Chronicall/ACR to log new data while the database is still migrating
7. Start the Chronicall/ACR service back up again

Potential Errors

• java.lang.RuntimeException: Error! You are missing your encryption key! Please find your encryption key in a backed-up settings file and restore it to your current settings.xml file

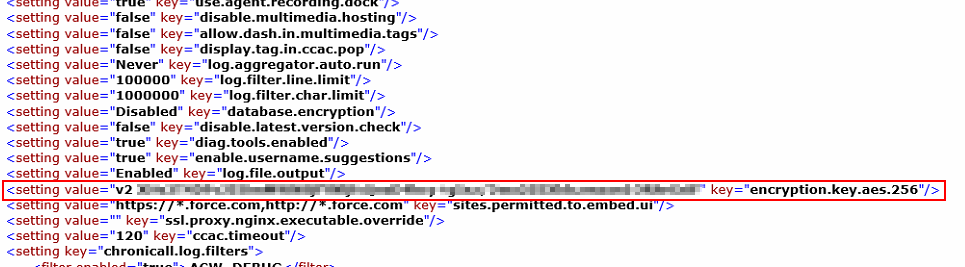

  • We have seen this error occur on a 3.12 install, that did not have the line below in the Chronicall's settings.xml.  You can pull this line from a healthy settings.xml or a settings.bak
  • It should look like this.  An example with the encryption key blanked out to xx's is below as well, but your actual encryption key should be a mix of numbers and letters.  Copy and paste it from a healthy settings.xml or settings.bak file




  • Example below


    • <setting key="encryption.key.aes.256" value="v2 xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"/>
